My Jeep – Transmission Removal, Part 2

HAND BRAKE CABLE

CLUTCH RELEASE FORK CABLE

GROUND STRAP

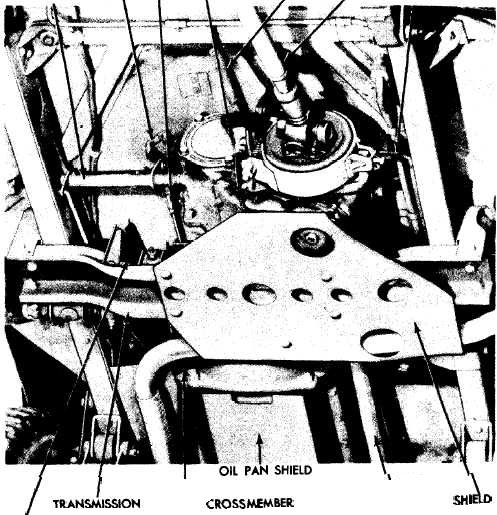

CLUTCH SHAFTpag1_5_5_2Figure 6 – Under Side of Chassis

b.Remove Transmission Shield (fig. 6). Remove the cap screwsthat secure the exhaust pipe clamp to the shield, and remove theclamp.Remove the five bolts that secure the transmission shield tothe transmission support crossmember. Remove the transmissionshield.c. Remove Brake Springs and Speedometer Cable (fig. 6).Remove the hand brake spring.Remove the foot brake spring lead-ing from the bottom of the brake pedal to the transmission supportcrossmember.Disconnect the speedometer cable at the transfer case.
